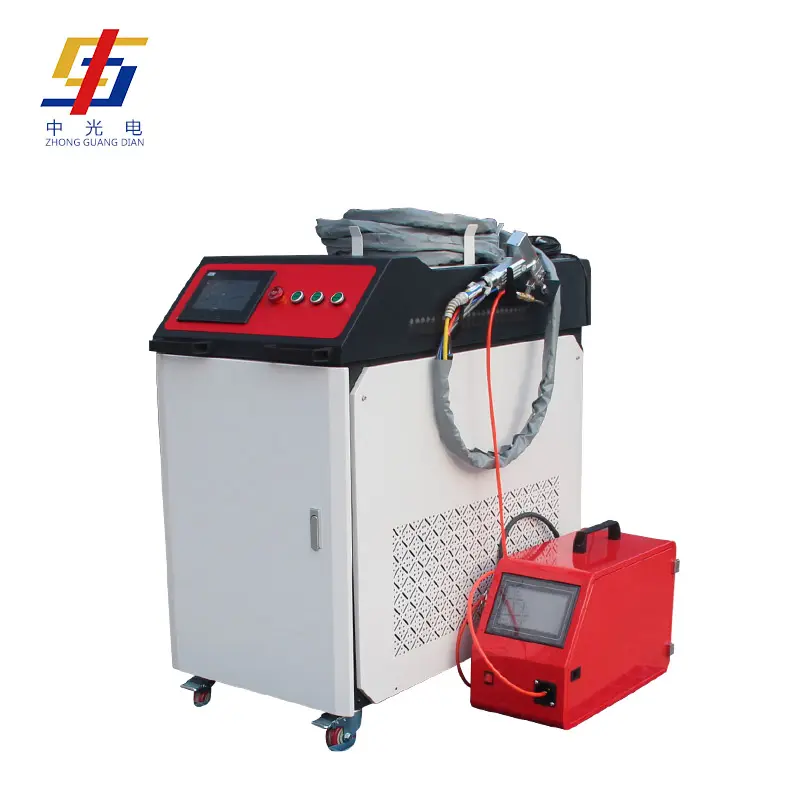

What are the unique features of a laser welding machine?

Unmatched Precision and Repeatability in Laser Welding

How Laser Welding Achieves Micron-Level Precision

According to research from the Fraunhofer Institute back in 2023, laser welding can achieve around plus or minus 5 micrometers of accuracy. How does it work? Well, basically these systems focus super concentrated light into beams that are just 0.1 to 0.3 millimeters wide. What this means is they create tiny melt pools actually smaller than what we'd see on a single strand of hair. This level of control makes all the difference when manufacturing things like pacemakers or other delicate electronic components where even the slightest misalignment matters. Traditional TIG welding just isn't cut out for such fine work since it has trouble handling anything finer than about half a millimeter. Laser systems get around this limitation through something called closed loop feedback mechanisms that constantly adjust based on how materials react during the process itself.

Role of Beam Focus and Control Systems in Accuracy

Precision relies on beam shaping optics, galvanometer scanners capable of 500 mm/s repositioning, and temperature-stabilized fiber lasers. Modern setups integrate CCD cameras with AI algorithms to dynamically adjust focal length during welding, maintaining angular accuracy within <0.1°—even on curved or irregular surfaces.

Comparison With Traditional Welding Methods in Dimensional Consistency

Automotive manufacturers report 63% fewer post-weld machining steps when replacing resistance spot welding with laser technology (SAE Technical Paper 2023), significantly reducing production costs and cycle times.

Case Study: High-Precision Automotive Component Welding

A Tier 1 supplier reduced fuel injector nozzle reject rates from 12% to 0.8% after switching to pulsed fiber laser welding. By combining 50 μs pulse control with adaptive seam tracking, they achieved consistent weld depths of ±30 μm across 1.2 million units annually.

Impact of Automation and Real-Time Monitoring on Repeatability

Robotic integration enables 24/7 operation with less than 0.01% parameter drift over 10,000 cycles. Real-time spectroscopy analyzes plasma emissions at weld speeds up to 2 m/s, while force-torque sensors maintain precise contact pressure (0.05 N) even on uneven substrates, ensuring consistent fusion quality.

High Speed, Efficiency, and Energy Optimization

High-Speed Welding Enabled by Concentrated Energy Delivery

Laser welding achieves travel speeds up to 100 mm/s in 2 mm steel thanks to energy densities exceeding 1 MW/cm²—3–5× higher than MIG welding (≈0.8 MW/cm²). The tightly focused beam rapidly melts material with minimal thermal spread, enabling faster processing without sacrificing joint integrity.

Throughput Advantages in Mass Production Environments

In automotive assembly, laser welding reduces cycle times by 40–60% compared to resistance spot welding. One EV manufacturer reported a single laser system completing 1,200 battery tab welds per hour—versus 700 using ultrasonic methods—demonstrating superior throughput in high-volume production.

Energy Efficiency Comparison Between Fiber, Disk, and CO₂ Lasers

According to a 2024 materials processing study, fiber lasers consume 52% less energy per meter of weld than CO₂ systems in sheet metal applications, making them the preferred choice for sustainable manufacturing.

Trend: Integration With Robotic Systems for Continuous Operation

Automated laser cells equipped with 6-axis robots achieve 98% uptime in appliance manufacturing, executing 14,000 consecutive welds with ≈0.1 mm positional drift. This integration eliminates manual handling delays, which can account for up to 25% of shift time in traditional welding workflows.

Strategy: Optimizing Parameters for Maximum Weld Speed Without Quality Loss

Advanced systems use coaxial thermal imaging to dynamically modulate power (1–6 kW), focal position (±0.05 mm), and travel speed (10–150 mm/s). By stabilizing the keyhole within 50–200 μs fluctuation windows, operators reach speeds of 75 m/min in 1.5 mm aluminum while keeping porosity below 0.2%.

Minimal Heat Distortion and Deep Penetration Capabilities

Physics Behind Low Heat-Affected Zones in Laser Welding

Laser welding minimizes heat-affected zones (HAZ) by concentrating energy at wavelengths of 1,060–1,080 nm into a micron-scale spot. Unlike arc processes that disperse heat broadly, this precision limits thermal distortion by up to 75%, preserving base material properties—essential for aerospace alloys and medical implants where microstructural stability is critical.

Achieving Deep Penetration With Keyhole Welding Mechanism

The keyhole effect allows penetration depths of up to 15 mm in steel and 25 mm in aluminum. When laser intensity exceeds 1 MW/cm², vaporization forms a plasma-filled cavity that channels energy deep into the workpiece. This produces depth-to-width ratios of 10:1—far beyond arc welding capabilities—while maintaining 30% narrower fusion zones.

Case Study: Aerospace Alloy Joining With Reduced Warping

A 2022 simulation-based study on Ti-6Al-4V components showed laser welding reduced post-weld straightening costs by $280 per unit. Using 4 kW fiber lasers with adaptive cooling, engineers limited distortion to 0.12 mm in turbine blade assemblies—65% lower than plasma arc welding—and eliminated 3.2 hours of manual rework per part.

Advantage Over Arc Welding in Thin and Heat-Sensitive Materials

For sub-1 mm materials like battery foils and sensor housings, laser welding offers significant benefits:

Localized heating prevents burn-through in 0.2 mm stainless steel shims while achieving >95% joint strength consistency—vital for MEMS and flexible electronics manufacturing.

Core Technologies: Types of Lasers in Modern Laser Welding Machines

Modern laser welding machines leverage distinct laser types tailored to specific materials, thicknesses, and precision requirements. Each technology balances efficiency, beam quality, and application scope, allowing manufacturers to match system performance with production goals.

Fiber Lasers: Dominance in Industrial Applications Due to Efficiency

Fiber lasers lead industrial adoption due to 30–50% higher wall-plug efficiency than CO₂ systems (Material Processing Journal 2023). Their solid-state design ensures low maintenance and excellent beam quality, ideal for deep-penetration welding of stainless steel and aluminum in automotive and sheet metal fabrication.

Disk Lasers: Balancing Power and Beam Quality

Disk lasers generate high-power outputs (8–16 kW) using rotating semiconductor disks, maintaining near-diffraction-limited beam quality. This makes them suitable for thick-section welding up to 25 mm in shipbuilding and heavy machinery, achieving seam tolerances under ±0.1 mm in controlled environments.

CO₂ Lasers: Niche Use in Non-Metal Welding

Though largely replaced in metalworking, CO₂ lasers remain effective for polymers, acrylics, and ceramics due to their 10.6 μm wavelength, which enhances absorption in non-conductive materials. They deliver bond strengths of 12–18 MPa in medical device polymer assembly (Advanced Joining Quarterly 2023).

Direct-Diode and Solid-State Lasers: Emerging Alternatives

Direct diode lasers save around 40 percent on costs when compared to fiber systems because they have simpler optical pathways. This makes these lasers work well for things that don't need much power, such as welding battery tabs together. Then there are hybrid solid state lasers that mix Nd:YAG crystals with fiber delivery systems. These can do micro welding on copper alloys while keeping heat input under 50 joules per square centimeter. That kind of precision matters a lot in semiconductor packaging and when working with densely packed electronic components where too much heat would cause problems.

Innovations and Future Trends in Laser Welding Technology

Smart Sensors and AI-Driven Process Control

According to research from the Fraunhofer Institute back in 2023, AI monitoring systems cut down defects by around 32 percent when compared to what humans can manage manually. What makes these systems so effective? They watch the welding process closely using those fancy high speed cameras along with infrared sensors. When something goes off track, they make corrections to the laser beam's focus or power level within just five milliseconds after spotting an issue. Big name manufacturers have started rolling out machine learning models that were trained on literally millions of simulated scenarios. These models help fine tune all sorts of settings specifically for tricky materials such as titanium aluminum composites which are becoming increasingly common in modern manufacturing applications.

Hybrid Laser-Arc Welding Systems for Enhanced Flexibility

Combining laser welding with gas metal arc welding (GMAW) improves joint gap tolerance while increasing penetration depth by 18% in thick steel plates. This hybrid approach maintains 0.1 mm positional accuracy and has been shown to reduce post-weld machining time by 41% in heavy machinery production (Journal of Materials Processing Tech 2023).

Ultrafast Pulsed Lasers for Micro-Welding Applications

Picosecond pulsed lasers enable 50 μm-wide seams in medical devices, generating 79% less thermal stress than nanosecond systems. As demand grows for hermetic sealing in microelectronics, Samsung reported a 15% yield increase in smartphone battery compartment welding after adopting ultrafast lasers in 2024.

Controversy Analysis: Cost vs. ROI of Next-Gen Laser Systems

Despite 28–35% higher initial investment, next-generation laser systems offer an average ROI within 18 months due to:

A 2024 survey of 412 manufacturers found 73% view AI-equipped laser systems as essential, citing annual production cost savings of 9–14%. However, critics note integration expenses often exceed $220k, creating barriers for small-batch operations in aerospace prototyping and custom automotive fabrication.

FAQs About Laser Welding Technology

What is laser welding used for?

Laser welding is commonly used in manufacturing settings where high precision and control are essential, such as in electronics, automotive, aerospace, and medical industries.

How does laser welding help in reducing production costs?

Laser welding reduces production costs by minimizing post-weld machining steps, increasing efficiency, and reducing material waste.

Are there any limitations to laser welding?

Laser welding may have higher initial costs and requires precise control and parameter optimization, which can be challenging without the right equipment and expertise.

Is laser welding environmentally friendly?

Yes, laser welding is considered environmentally friendly because it reduces energy consumption and material waste in production processes.

What are the advances in laser welding technologies?

Recent advances include AI-driven process control, hybrid laser-arc systems, ultrafast pulsed lasers, and smart sensors integration for enhanced precision and efficiency.
